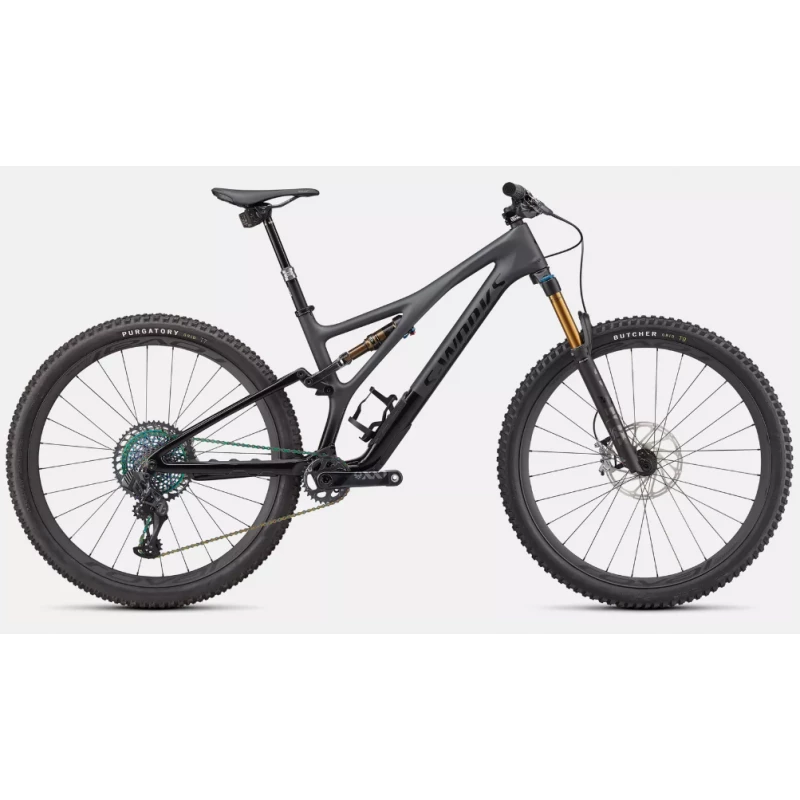

Specialized Vélos VTT SPECIALIZED S-Works Stumpjumper

Cadre

CADRE :

FACT 11m carbon chassis and rear-end, asymmetrical design, 29 Trail Geometry, SWAT™ Door integration, flip chip Head Tube/Bottom Bracket adjustment, threaded BB, fully enclosed internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 130mm of travel

COL. TIGE DE SELLE :

Alloy, 38.6mm

Suspension

AMOR. ARRIÈRE :

FOX FLOAT DPS Factory, Rx Trail Tune, EVOL Air sleeve, Kashima Coat, 3-position adjustment w/ Open Mode Adjustment, 190x45mm

FOURCHE :

FOX FLOAT 34 Factory, GRIP2 damper, Kashima Coating, 15x110mm, 44mm offset, 140mm of travel

Poste de pilotage

POTENCE :

Deity, 35.0mm

GUIDON :

Roval Traverse SL Carbon, riser bar, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm, 35.0mm

POIGNÉES :

Deity, Knuckleduster, Black

SELLE :

Bridge, 155/143mm, Hollow Ti-rails

TIGE DE SELLE :

RockShox Reverb AXS, 30.9, 1X remote, (S1:100mm, S2: 125mm, S3: 150mm, S4-S6: 170mm)

Freins

FREIN AVANT :

SRAM G2 Ultimate, 4-piston caliper, hydraulic disc, 200mm

FREIN ARRIÈRE :

SRAM G2 Ultimate, 4-piston caliper, hydraulic disc, 180mm

Transmission

DÉR. ARRIÈRE :

SRAM XX1 Eagle AXS

MANETTES DE DÉR. :

SRAM Eagle AXS Rocker Paddle

CASSETTE :

Sram XG-1299, 12-Speed, 10-52t

CHAÎNE :

SRAM XX1 Eagle

PÉDALIER :

SRAM XX1 Eagle, DUB, S1:165mm, S2-S5: 170mm, S6: 175mm

PLATEAUX :

Alloy, 30T

JEU DE PÉDALIER :

SRAM DUB, BSA 73mm, threaded

Roues

JANTES :

Roval Control 240, hookless carbon, 29mm inner width, hand-built, 2Bliss Ready

MOYEU AVANT :

DT Swiss 240, sealed cartridge bearings, 15x110mm spacing, 28h

MOYEU ARRIÈRE :

DT Swiss 240, Ratchet EXP, 36t engagement, SRAM XD driver body, 12mm thru-axle, 148mm spacing, 28h

RAYONS :

DT Swiss Competition Race

PNEU AVANT :

Butcher, GRID casing, GRIPTON® T7 compound, 29×2.3″

PNEU ARRIÈRE :

Purgatory, GRID casing, GRIPTON® T7 compound, 29×2.3″

CH. À AIR :

Standard, Presta valve
